| Management number | 209157319 | Release Date | 2026/03/29 | List Price | $113.20 | Model Number | 209157319 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

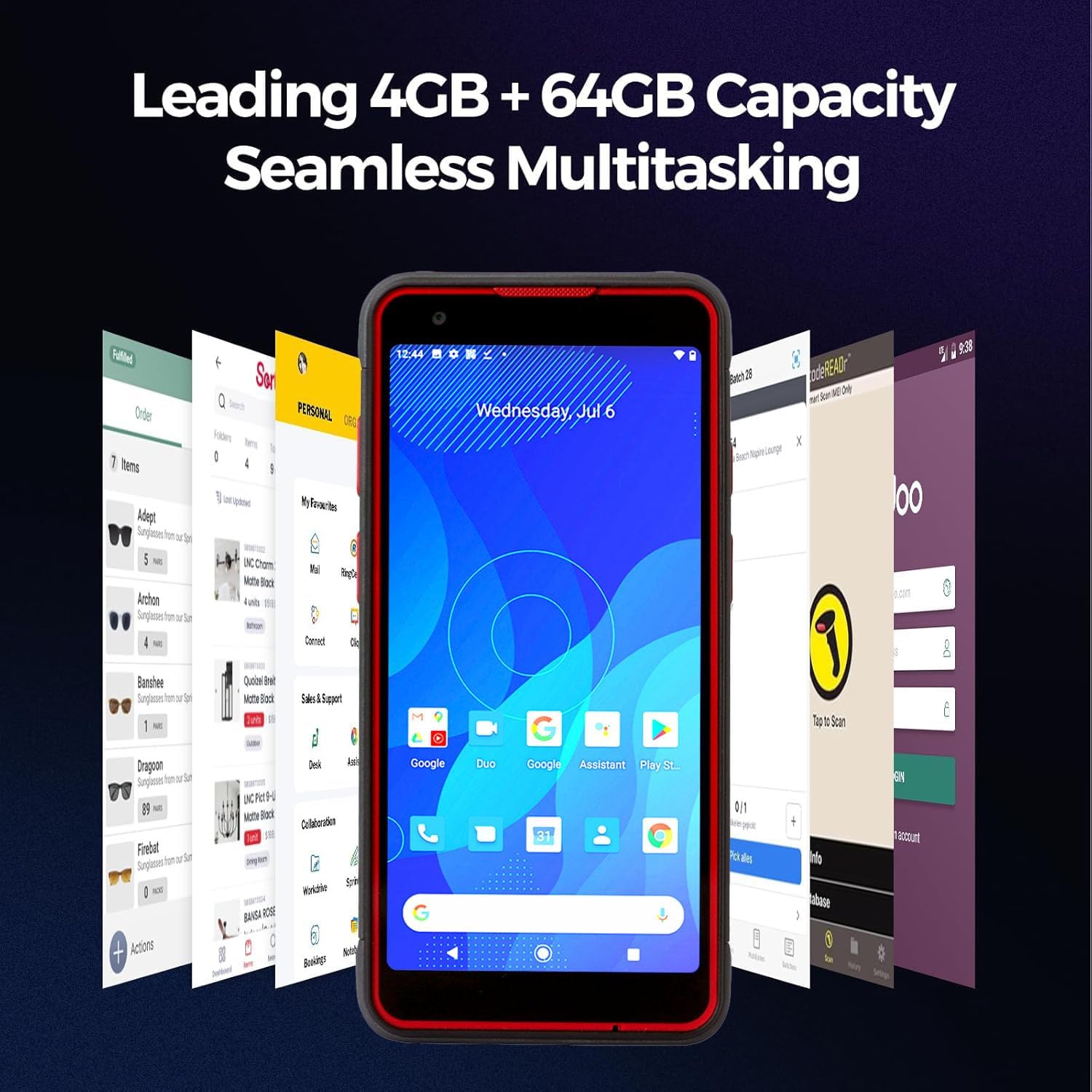

CPU: Cortex-A76/A55 2.3GHz MTK6765 Operating system: Android 13 Memory RAM:DDR4 4GB; NandFlash:64GB WLAN: 2.4GHz/5GHz, support IEEE 802 a/b/g/n/ac protocol WWAN: 2G: GSM, CDMA 3G: WCDMA, CDMA2000, TD-SCDMA 4G: TD-LTE, FDD-LTE Bluetooth: Bluetooth 5.0, transmission distance is 5-10m Dimension: 169.5mm×83.2mm×18.18mm weight: <350g, depends on the required functions Display: 6inch IPS color display, 720X1440 / 1080P pixel Touch panel: Support multi touch Battery capacity: Rechargeable polymer battery (7.7V 4000mAh), Standby time > 350 hours Working time > 15 hours Support fast charge, battery can be removable and it can replace RTC battery when power on the device Charging time: 3 hours to 85% and 4 hours to 100% (charge with standard fast charge plug and cable) Slot : Nano SIM card slot * 1, PSAM card slot(TF) * 1 Interface :Type-C * 1, Support OTG Audio: Speaker * 1, Microphone *2, headphone * 1, Motor * 1 keyboard: Silicone button: power button,volume +/-,scan button *2 Sensor: G sensor, optical sensor, range sensor,gyro, and electronic compass Rear camera: 13MP, front camera, automatic focusing, flash light, anti-shake, micro shooting Front camera: 5MP color camera Data collector specification 2D QR code scanner (Optional): CM60 default; Option scanner: SE5500 long distance , SE4770, SE4710, N1 PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code, etc. NFC(optional): 13.56 Mhz, ISO14443A, ISO15693, Mifare, reading distance 2-5cm UHF RFID(optional): 15 meters distance for UHF reader Operating Environment Operating Temperature: -30°C~+55°C Storage Temperature: -40°C~+70°C Environment Humidity: 5%RH ~ 95%RH (no condensation) IP rate: IP68, 6 sides can bear 2 times impact from 1.8m drop to cement floor in the range of operating temperature Accessories: Type C charging cable * 1, charging plug * 1
| Brand | RUGLINE |
|---|---|
| Item Weight | 350 Grams |
| Manufacturer | RUGLINE |
| Power Source | Battery Powered |
| Compatible Devices | Desktop, Laptop, POS, Smartphone, Tablet |
| Real Angle of View | 56 Degrees |
| Number of Batteries | 1 Lithium Polymer batteries required. (included) |
| Warranty Description | 1 Year |
| Connectivity Technology | 4G/3G/2G; Bluetooth BT5.0 LE; Wi-Fi |
| Maximum Storage Temperature | 70 Degrees Celsius |
